Where ever there is interaction between humans & machines, ensuring the safety of operators and machines is given the top priority. Door interlock switches, emergency stop switches, light curtains, , laser scanners and other safe inputs or safe sensing products are used for detection, and the safety controller can monitor multiple devices, process the signals and provide the logic to assure that a safe machine environment is established as set by the requirements of the machine designer.
Distinctive styled X6 (AB6E) 16mm mounting E-Stop series…
- 2 button colour options – Red for E-Stop and Yellow for Stop switch
- 1NC or 2NC contacts options
- 2 button sizes – 30mm or 40mm
- 2 ways to reset – Twist or Pull
- Available with or without arrow marking
- Direct opening action (IEC 60947-5-5; 5.2, IEC 60947-5-1, Annex K)
- Operating Temperature range of -25 to +60degC & IP65

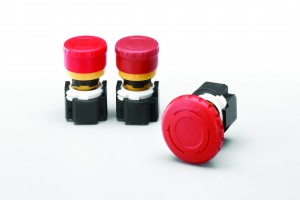

Small unibody XA series 16mm mounting E-Stop series…
- Requires only ø16mm × 19.5mm for installation
- ø29mm and ø40mm mushroom operators
- Degree of protection IP65 and IP40 (IEC 60529)
- Dark red (Munsell 5R4/12) and bright red (Munsell 7.5R4.5/14) colours for operators of emergency stop switches, and yellow/gray for stop switch operators
- Gold-plated crossbar contacts
- Push-to-lock, pull or turn-to-reset operator
- UL, c-UL recognized. EN compliant
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Direct opening action mechanism
- (IEC 60947-5-5, 5.2, IEC60947-5-1, Annex K)
World’s first 16 mm, 4-contact Emergency Stop Switch.
- Compact size – only 27.9 mm deep behind the panel for 1 to 4 contacts
- IDEC’s original “Safe break action” ensures that the contacts open when the contact block is detached from the operator
- 1 to 4NC main contacts and 1NO monitor contact
- Push-to-lock, Pull or Turn-to-reset operator
- Direct opening action mechanism (IEC60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Safety lock mechanism (IEC60947-5-5, 6.2)
- Degree of protection IP65 (IEC60529)
- Two operator sizes: ø29 and ø40 mm
- Red for the operator of emergency stop switches, and gray for stop switch operators
- UL, c-UL approved. EN compliant
XW series 22mm, 4-contact E-Stop with “safe break action”
- Compact size – only 27.9 mm deep behind the panel for 1 to 4 contacts
- IDEC’s original “Safe Break Action” and “Reverse Energy Structure” ensure the safety of operator and system, when the switch is damaged due to excessive shocks
- The mechanical indicator on the operator body shows the normal/ latched status (green: normal)
- Reduces maintenance work and improves operation efficiency
- Illuminated model also available (same size as non-illuminated)
- The depth behind the panel is only 46.4mm (w/terminal cover)
- 1 to 4NC main contacts and 1 or 2NO monitor contact
- Push-to-lock, Pull or Turn-to-reset operator
- Direct opening action mechanism (IEC 60947-5-5, 5.2, IEC 60947-5-1, Annex K)
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Degree of protection: IP65 (IEC 60529)
XN series 30mm, 4-contact E-Stop with “safe break action”
- Padlockable type, flush bezel type, ø60mm jumbo mushroom, illuminated type, LED push-on type are available
- IDEC’s original “Safe break action” and safety potential structure ensures the highest level of safety
- Safety lock mechanism (IEC 60947-5-5, 6.2)
- Direct opening action mechanism (IEC 60947-5-5, 5.2, IEC60947-5-1, Annex K)
- Short depth behind the panel – only 47.7 mm for 4-contact, illuminated type (flush bezel: 60.4 mm, padlockable: 61.4 mm)
- Padlockable type can be locked using padlocks when latched (main contact: OFF). The rugged aluminum diecast shroud allows for installing a maximum of 20 padlocks using a hasp (total weight: 1500g maximum)
