Slim “terminal style relay” RV8H…
- Space saving 6mm width and only 70mm in height from DIN rail
- 6 Amp rated, gold plated contacts
- Pre-assembled relay and DIN socket
- Universal screw (flat and Phillips) or spring clamp terminals
- Coil voltage:
- DC: 5V, 6V, 9V, 12V, 18V & 24V
- AC/DC: 12V, 18V, 24V, 48V, 60V, 100-125V, 220-240V
Download PDF’s
- Brochure: IDEC general Relay selection guide
Solid State “terminal style relay” RV8S…
- Space saving 6mm width and only 70mm in height from DIN rail
- Pre-assembled relay and DIN socket
- Universal screw (flat and Phillips) or spring clamp terminals
- Input voltage: DC: 6V & 24V or AC: 120V, 240V
- Output Voltage: DC: 24V (@ 3.5A) & 48V (@ 0.1A) or AC: 240V (@ 2A)
- Operating Temperature: -20 to +60 degC
- Jumper bars available to speed up installation wiring
Download PDF’s
- Brochure: IDEC-RV8H-RV8S-Relays
12mm wide 1pole & 2 pole RJ relay…
- Compact size (12.7mm wide) for maximum space savings on DIN rail
- SPDT 12A and DPDT 8A contacts (also a high capacity 16A SPST-NO is available)
- Bifurcated option available (minimum load 1V, 100microA)
- LED indication for operation status
- Spade terminal & PCB mount options
- Locking and release lever on SJ DIN rail mount sockets
- Lloyd Register type approved
- Coil voltage:
- DC: 6V, 12V, 24V, 48V & 100-110V
- AC: 12V, 24V, 120V, 220V & 240V
Download PDF’s
- Brochure: IDEC general Relay selection guide

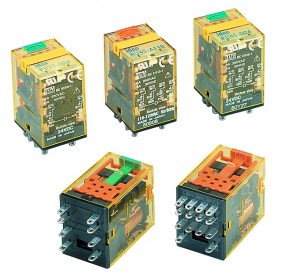

General purpose 2 & 4 pole RU relay…
- DPDT 10A, 4PDT 6A and bifurcated 4PDT 3A contact
- LED indication and latching override / test lever
- Colour-coded, snap-on marking plates
- Spade terminal & PCB mount options
- Coil voltage:
- DC: 6V, 12V, 24V, 48V & 110V
- AC: 24V, 120V, 220V
Download PDF’s
- Brochure: IDEC general Relay selection guide
IDEC RL series “power relay”…
- 30 Amp – ideal for HVAC panels, energy management, & applications requiring higher voltage loads and inductive kick-back
- DIN rail mount (without the need for a socket) or flange / panel mount
- Single pole 30A, double pole 25A
- Up to 7500 VA maximum switching
- Coil voltage:
- DC: 12V & 24V
- AC: 24V, 100-120V & 200-240V
Download PDF’s
- Brochure: IDEC RL Series Power Relay (PDF)
Force Guided 2 pole (up-to 6 contacts) RF relay…
- Compact and slim
- Built-in LED indicator, RTIII degree of protection and counter-electromotive force models
- RF2: 2-pole, 6A contacts, RF1: 4 pole or 6 pole options
- Force guided contact mechanism (EN50205)
- Socket and PC board mounting
- Fast response time & High shock resistance
- Coil voltage:
- DC: 12V, 24V, 48V
Download PDF’s
- Brochure: Force Guided Relay (2 pole) RF2
- Brochure: Force Guided Relay (4 & 6 pole) RF1
